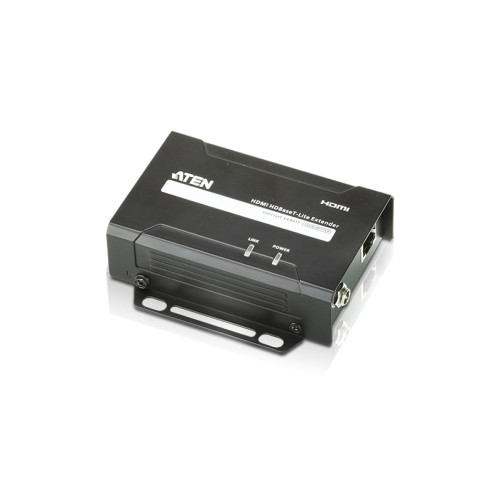

The VE801T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801T all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801T is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended at great distances.
Connectivity technology
- Wired
HDMI In
- 1
RJ-45 Output Ports
- 1
Cable Types Supported
- Cat5, Cat6, Cat6a
Supported Video Modes
- 1080p
HDCP
- Yes
DC-In Jack
- Yes
AC Adapter Included
- Yes
Maximum Resolution
- 3840 x 2160 pixels
Compliance Certificates
- RoHS
Storage temperature (T-T)
- -20 - 60 °C
LED indicators
- Yes
Maximum transfer distance
- 70 m
Operating relative humidity (H-H)
- 0 - 80%
Operating temperature (T-T)
- 0 - 50 °C
Ethernet LAN
- Yes
Power consumption (typical)
- 1.85 W
Bandwidth
- 340 MHz
Weight
- 240 g
Depth
- 103 mm
Width
- 87 mm
Height
- 30 mm
Quantity per pack
- 1 pc(s)
Product colour
- Black
Material
- Metal
Brand
- ATEN
