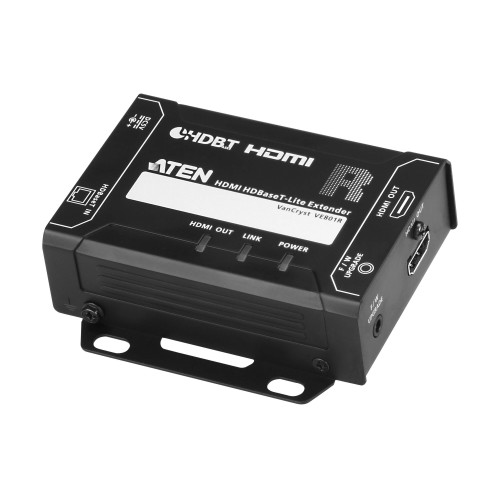

The VE801R HDMI HDBaseT-Lite Receiver incorporating connects with HDBaseT transmitters* to extend signal up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801R all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801R is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.
* Compatible HDBaseT Transmitter Units: VE801T
* Compatible HDBaseT Transmitter Units: VE801T
Storage temperature (T-T)
- -20 - 60 °C
RJ-45 Input Ports
- 1
Number of HDMI Outputs
- 1
Cable Types Supported
- Cat5e, Cat6, Cat6a
Supported Video Modes
- 1080p
HDCP
- Yes
DC-In Jack
- Yes
AC Adapter Included
- Yes
Dimensions (WxDxH)
- 87 x 103 x 30 mm
Maximum Resolution
- 3840 x 2160 pixels
Compliance Certificates
- RoHS
LED indicators
- Yes
Maximum transfer distance
- 70 m
Operating relative humidity (H-H)
- 0 - 80%
Operating temperature (T-T)
- 0 - 50 °C
Ethernet LAN
- Yes
Power consumption (typical)
- 4.23 W
Bandwidth
- 340 MHz
Weight
- 250 g
Product colour
- Black
Material
- Metal
Brand
- ATEN
