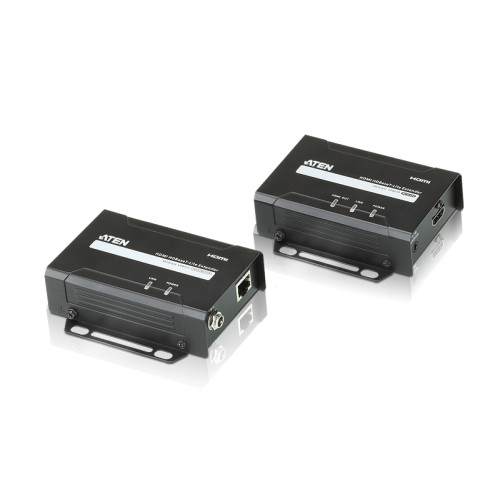

The VE801 HDMI HDBaseT-Lite Extender extends an HDMI signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801 all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801 is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.
1x VE801T/R HDMI HDBaseT-Lite Extender
2x 0AD6-1F05-26EG Power Adapters
1x User Instructions
1x VE801T/R HDMI HDBaseT-Lite Extender
2x 0AD6-1F05-26EG Power Adapters
1x User Instructions
Maximum Resolution
- 3840 x 2160 pixels
HDMI In
- 1
Receiver Dimensions (WxDxH)
- 34.3 x 98.6 x 30 mm
RJ-45 Input Ports
- 1
Transmitter Dimensions (WxDxH)
- 34.3 x 98.6 x 30 mm
Number of HDMI Outputs
- 1
Receiver Weight
- 250 g
Transmitter Weight
- 240 g
RJ-45 Output Ports
- 1
Cable Types Supported
- Cat5, Cat6, Cat6a
Supported Video Modes
- 1080p
HDCP
- Yes
DC-In Jack
- Yes
AC Adapter Included
- Yes
Compliance Certificates
- RoHS
Storage temperature (T-T)
- -20 - 60 °C
LED indicators
- Yes
Maximum transfer distance
- 70 m
Connectivity technology
- Wired
Operating relative humidity (H-H)
- 0 - 80%
Operating temperature (T-T)
- 0 - 50 °C
Ethernet LAN
- Yes
Bandwidth
- 340 MHz
Quantity per pack
- 2 pc(s)
Product colour
- Black
Material
- Metal
Brand
- ATEN
