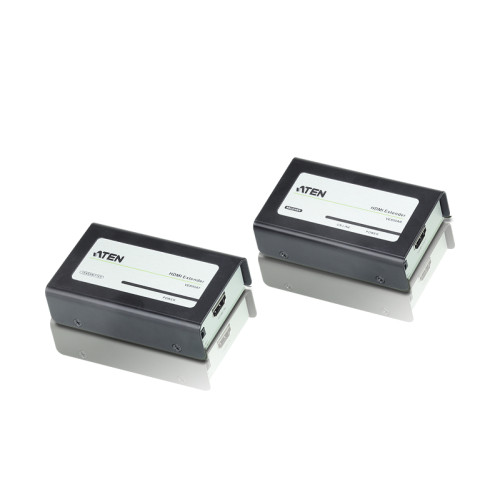

The VE800A HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using one Cat 5e cable. ATEN's VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display's EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.
1x VE800AT HDMI Extender
1x VE800AR HDMI Extender
2x 0AD6-1705-10EG Power Adapters
1x Mounting Kit
1x User Instructions
1x VE800AT HDMI Extender
1x VE800AR HDMI Extender
2x 0AD6-1705-10EG Power Adapters
1x Mounting Kit
1x User Instructions
DC-In Jack
- Yes
HDMI In
- 1
Power Consumption (Receiver) (Max)
- 0.61 W
Power Consumption (Transmitter) (Max)
- 0.9 W
Receiver Dimensions (WxDxH)
- 55 x 90 x 22 mm
RJ-45 Input Ports
- 2
Transmitter Dimensions (WxDxH)
- 55 x 90 x 22 mm
Number of HDMI Outputs
- 1
Receiver Weight
- 160 g
Transmitter Weight
- 160 g
RJ-45 Output Ports
- 2
Cable Types Supported
- Cat5, Cat6, Cat6a
Supported Video Modes
- 1080p
HDCP
- Yes
AC Adapter Included
- Yes
Maximum Resolution
- 1920 x 1080 pixels
Storage temperature (T-T)
- -20 - 60 °C
LED indicators
- Yes
Maximum transfer distance
- 3 m
Connectivity technology
- Wired
Operating relative humidity (H-H)
- 0 - 80%
Operating temperature (T-T)
- 0 - 50 °C
Ethernet LAN
- Yes
Bandwidth
- 225 MHz
Quantity per pack
- 2 pc(s)
Product colour
- Black
Material
- Metal
Brand
- ATEN
