The VE1812 HDMI HDBaseT Extender with POH is the ideal solution for connecting equipment in remote locations up to 100m over a single Cat 5e / 6 / 6a cable. With Long Reach Mode enabled, the VE1812 can extend HDMI signal up to 150m @1080p.
The VE1812 supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.
The VE1812 features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812 is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a cable, the maximum distance can reach up to 100 meters. The VE1812 is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.
Package Contents:

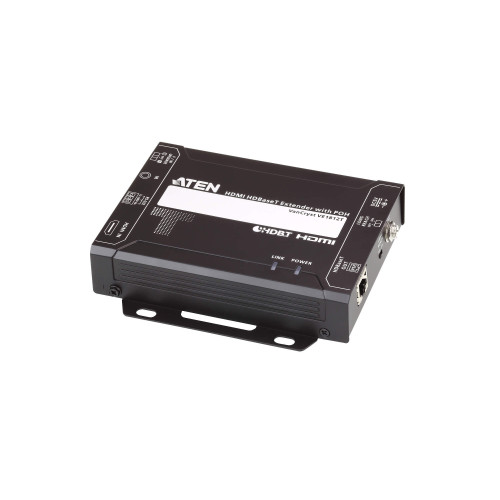

- 1x VE1812R HDMI HDBaseT Receiver with POH
- 1x Power Adapter
- 1x RS-232 Terminal Block
- 1x User Instructions
The VE1812 supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.
The VE1812 features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812 is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a cable, the maximum distance can reach up to 100 meters. The VE1812 is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.
Package Contents:
- 1x VE1812R HDMI HDBaseT Receiver with POH
- 1x Power Adapter
- 1x RS-232 Terminal Block
- 1x User Instructions
Remote (IR) Output
- 1
DC-In Jack
- Yes
HDCP
- Yes
Supported Video Modes
- 1080p
Cable Types Supported
- Cat5e, Cat6, Cat6a
Video Out
- 1
Receiver Weight
- 450 g
Number of HDMI Outputs
- 1
RJ-45 Input Ports
- 1
HDBaseT Port
- Yes
Receiver Dimensions (WxDxH)
- 123 x 144.8 x 30 mm
Power Consumption (Receiver) (Max)
- 6.4 W
Operating Voltage (Receiver)
- 5 V
External Power Adapter
- Yes
Consumer Electronics Control (CEC) Support
- Yes
3.5 mm (1/8-inch) Out
- Yes
RS-232 Output ports
- 1
Supported Graphics Resolutions
- 3840 x 2160, 4096 x 2160
3D
- Yes
AC Adapter Included
- Yes
Quick Start Guide
- Yes
Maximum Resolution
- 4096 x 2160 pixels
Compliance Certificates
- RoHS
Storage temperature (T-T)
- -20 - 60 °C
LED indicators
- Yes
Maximum transfer distance
- 150 m
Connectivity technology
- Wired
Operating relative humidity (H-H)
- 0 - 80%
Operating temperature (T-T)
- 0 - 40 °C
Bandwidth
- 340 MHz
Product colour
- Black
Material
- Metal
Brand
- ATEN
