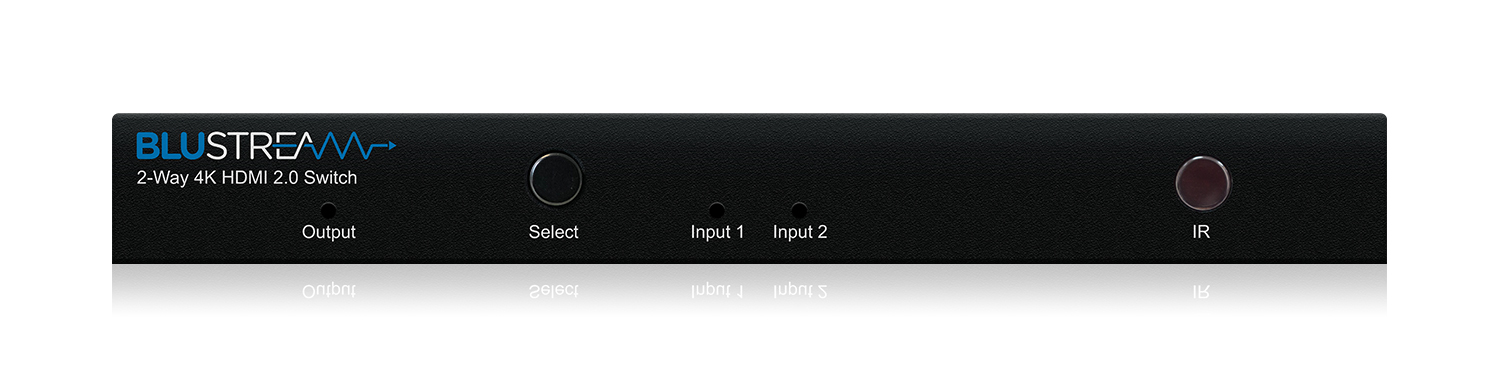

Our SW21AB-V2 is a 2-Way HDMI switch with integrated audio breakout.
The switch supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.
• Features 2x HDMI inputs which can be switched to single HDMI output
• Supports full HDMI 2.0 specification 4K UHD video (4K @60Hz 4:4:4)
• HDCP 2.2 compliant
• Supports 3D signal display
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby True HD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
• CEC (Consumer Electronic Command) is blocked from the inputs to the end sink / display
• Control via front panel and IR
• Advanced EDID management
*Auto switching only available on units with serial no. 70522400001 or above
