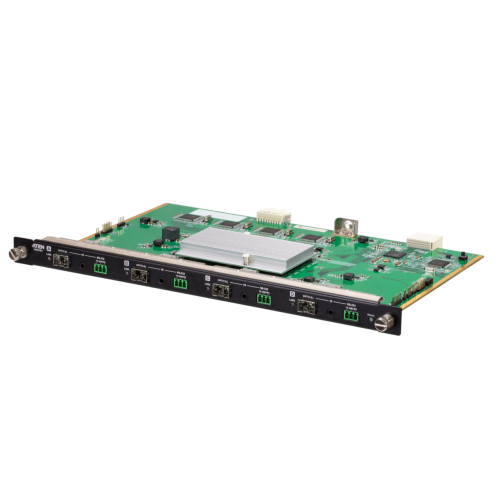

The VM8584 4-Port 10G Optical Output Board offers an easy way to route 4 HDMI sources to HDMI displays through optical extenders, and up to 16/32 input and 16/32 output connections on an ATEN Modular Matrix Switch through various AV interfaces. Designed with fiber optics technology for long-distance transmission, the VM8584 along with its SFP+ module extends uncompressed 4K signal up to 300 m (using VM8584K1) or 10 km (using VM8584K2) over duplex fiber optic cables. The optical fiber simplifies cabling by guaranteeing an interference-free long-haul transmission of audio, video, IR, and RS-232 control signals over one single set of duplex cables that easily connects to the SFP+ slot. Moreover, the VM8584 supports a high data rate of 10.2 Gbps and meets HDMI Specifications that include 3D, Deep Color, and 4K to ensure superior video quality.
1x VM8584 4-Port 10G Optical Output Board
4x SFP+ Modules
4x 3-Pole Terminal Blocks
1x IR Receiver
1x IR Emitter
1x User Instructions
1x VM8584 4-Port 10G Optical Output Board
4x SFP+ Modules
4x 3-Pole Terminal Blocks
1x IR Receiver
1x IR Emitter
1x User Instructions
Compatibility
- Aten VM3250/VM3200/VM1600A
Quick Start Guide
- Yes
Storage relative humidity (H-H)
- 0 - 80%
Storage temperature (T-T)
- -20 - 60 °C
LED indicators
- Yes
Operating relative humidity (H-H)
- 0 - 80%
Operating temperature (T-T)
- 0 - 40 °C
Package weight
- 1.14 kg
Power consumption (typical)
- 22.96 W
Weight
- 785 g
Depth
- 352 mm
Width
- 238 mm
Height
- 23.3 mm
Package height
- 57 mm
Package depth
- 426 mm
Package width
- 285 mm
Product colour
- Black
Material
- Metal
Product Type
- Output board
Brand
- ATEN
