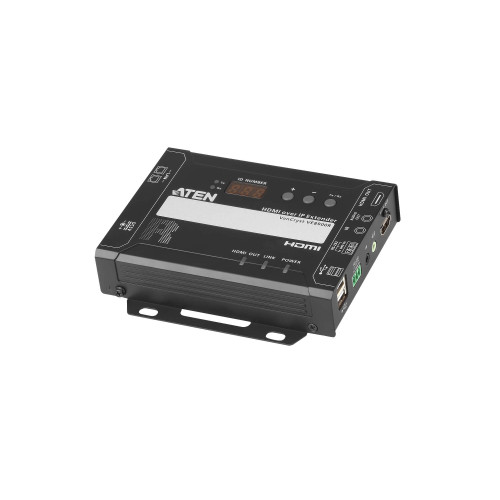

The ATEN VE8900R Video over IP Receiver delivers visually lossless 1080p AV signals with low latency over long distance via a local network of standard Gigabit network switch.
The VE8900R provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators
Engineered to meet today’s demands of large scale, multi-display, 1080p signal transmission, and designed to be easy to set up and operate, the VE8900R Video over IP Receiver is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.
Package Contents
- 1x VE8900R HDMI over IP Receiver
- 1x RS-232 Terminal block
- 1x 5V Power adapter
- 1x User instructions
The VE8900R provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators
Engineered to meet today’s demands of large scale, multi-display, 1080p signal transmission, and designed to be easy to set up and operate, the VE8900R Video over IP Receiver is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.
Package Contents
- 1x VE8900R HDMI over IP Receiver
- 1x RS-232 Terminal block
- 1x 5V Power adapter
- 1x User instructions
USB Ports Quantity
- 2
AC Adapter Included
- Yes
Serial Interface Type
- RS-232
DC-In Jack
- Yes
HDCP
- Yes
Supported Video Modes
- 1080p
Cable Types Supported
- Cat5e, Cat6
Video Out
- 1
Number of HDMI Outputs
- 1
Compliance Certificates
- RoHS
RJ-45 Input Ports
- 1
Remote (IR) Output
- 1
Baud Rate
- 19.2 Kbit/s
Audio Output
- 1
Serial Ports Quantity
- 1
Audio System
- stereo
Daisy Chain
- Yes
Power consumption (typical)
- 4.28 W
Material
- Metal
Product colour
- Black
Height
- 29.6 mm
Width
- 136 mm
Depth
- 101 mm
Weight
- 490 g
Control type
- Buttons
USB version
- 2.0
Operating temperature (T-T)
- 0 - 40 °C
Operating relative humidity (H-H)
- 0 - 80%
Networking standards
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Connectivity technology
- Wired
Maximum transfer distance
- 100 m
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Brand
- ATEN
