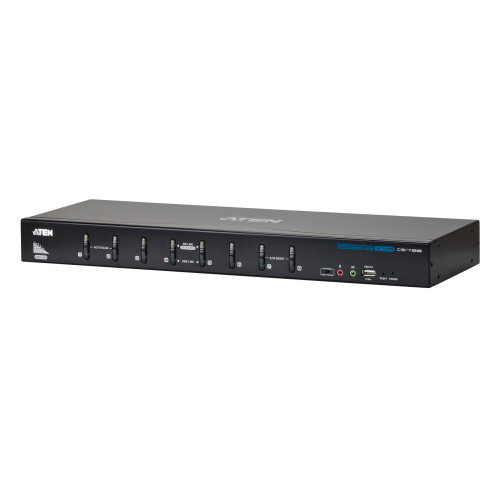

The CS1788 8-Port USB DVI Dual Link KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 computers from a single USB keyboard, USB mouse, and dual-monitor (DVI-I and VGA) console.
It can be cascaded to three levels – allowing up to 73 CS1788s to control up to 512 computers – all from the original single console, making it ideal for IT applications and management.
In addition, the CS1788 features multi-display functionality, which enables the use of standard USB cables to stack up to four switches for quad-displaying in multiple-monitor installations where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment.
1x CS1788 8-Port USB DVI KVM Switch with Rack Mounting Kit
2x 2L-7D02UD USB DVI-D Dual Link KVM Cable Sets
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x 0AD8-8605-40MG Power Adapter
1x Foot Pad Set (4 pcs)
1x User Instructions
It can be cascaded to three levels – allowing up to 73 CS1788s to control up to 512 computers – all from the original single console, making it ideal for IT applications and management.
In addition, the CS1788 features multi-display functionality, which enables the use of standard USB cables to stack up to four switches for quad-displaying in multiple-monitor installations where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment.
1x CS1788 8-Port USB DVI KVM Switch with Rack Mounting Kit
2x 2L-7D02UD USB DVI-D Dual Link KVM Cable Sets
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x 0AD8-8605-40MG Power Adapter
1x Foot Pad Set (4 pcs)
1x User Instructions
Push Button
- Yes
Video Port Type
- DVI-I
Headphone Outputs
- 10
HD Type
- WQXGA
Power Source
- DC
USB 2.0 Type-B Ports Quantity
- 8
DC-In Jack
- Yes
Console Ports
- 3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub)
Keyboard Port Type
- USB
Mouse Port Type
- USB
Number of Computers Controlled
- 8
Input Voltage
- 5.3 V
Quick Installation Guide
- Yes
Scan Interval
- 1,5,255 s
Video Bandwidth
- 60 Hz
Console USB Ports Quantity
- 2
Audio Connections
- Yes
number of Microphone Inputs
- 10
DVI-I Ports Quantity
- 8
USB 2.0 Type-A Hub Ports Quantity
- 2
USB Hub
- Yes
Built-in display
- No
Product colour
- Black
Housing material
- Metal
Package width
- 131 mm
Package depth
- 540 mm
Package height
- 233 mm
Height
- 44 mm
Width
- 437.2 mm
Depth
- 161.2 mm
Weight
- 3.96 kg
Power consumption (typical)
- 8.26 W
Package weight
- 4.48 kg
Operating temperature (T-T)
- 0 - 50 °C
Operating relative humidity (H-H)
- 0 - 80%
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Storage relative humidity (H-H)
- 0 - 80%
Maximum Resolution
- 2560 x 1600 pixels
USB Connector Type
- USB Type-A, USB Type-B
Brand
- ATEN
