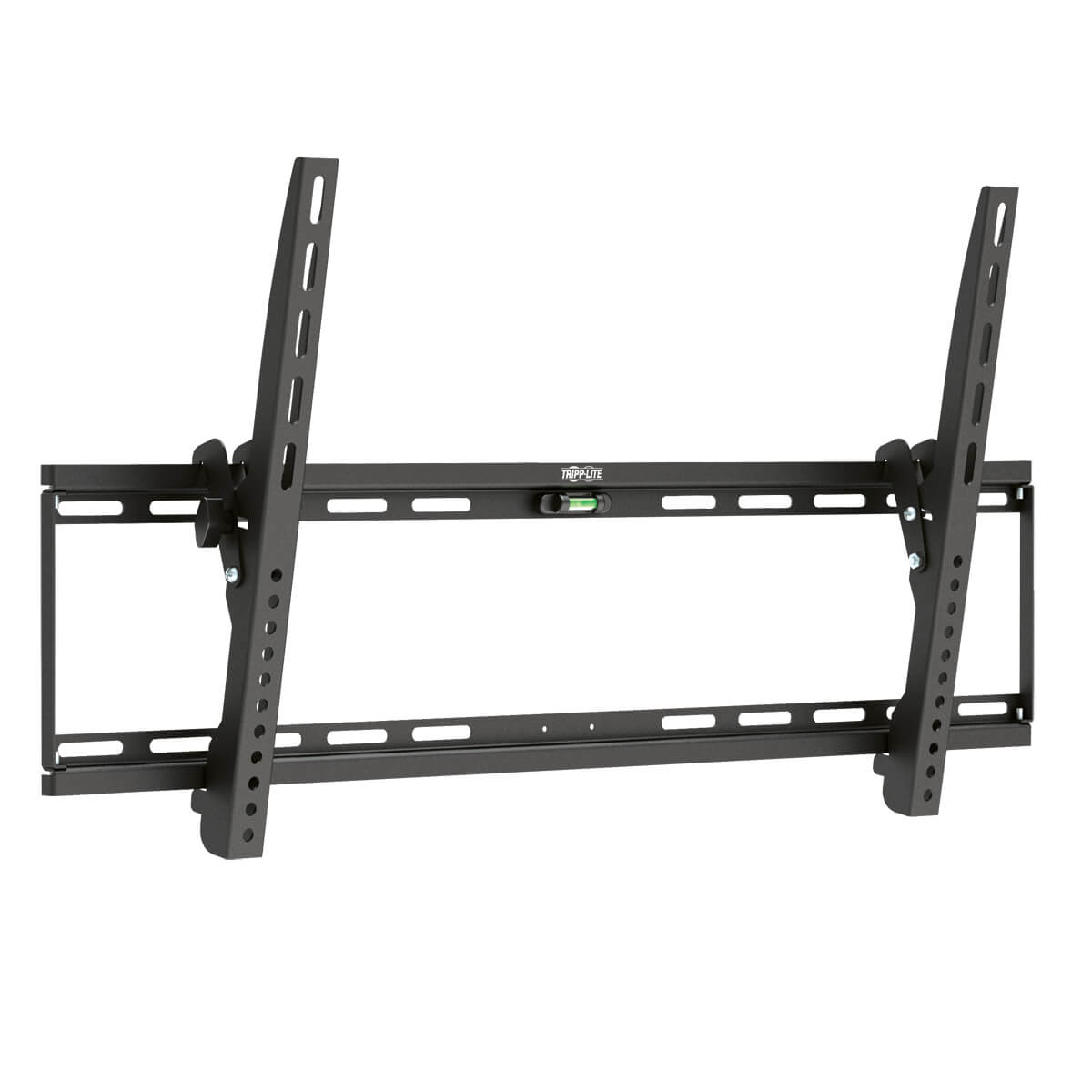

The VESAcompliant DWT3770X Tilt Wall Mount allows you to mount your flatpanel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flatpanel displays from 37 to 70 inches. A 10° to 0° tilt capability minimizes glare and provides comfortable viewing from multiple angles. Lowprofile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for offcenter wall studs. Builtin bubble level allows accurate display leveling. Durable allmetal frame with scratchresistant powdercoated finish supports up to 200 lbs (90.7 kgs). Mounting hardware included. Conforms to VESAcompliant displays with any of the following mounting hole patterns: 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm, 600 x 400 mm, 800 x 300 mm and 800 x 400 mm Mounts Your TV or Monitor to the Wall Fits most flatpanel televisions, monitors and other displays from 37 to 70 in. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants Mounts out of sight behind display for sleek, professional appearance Mounting hardware included Convenient OneTouch Adjustment 10° to 0° tilt capability provides comfortable viewing from multiple angles Improves viewing angles in applications where audience is below the display Durable Metal Construction Supports up to 200 lbs (90.7 kgs) Open frame allows easy wall access Adjustable mounting rails compensate for offcenter wall studs Builtin bubble level for accurate display leveling Scratchresistant powdercoated finish VESA Compliance Supports the following VESA mounting hole patterns: 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm, 600 x 400 mm, 800 x 300 mm and 800 x 400 mm
Brand
- Tripp Lite
