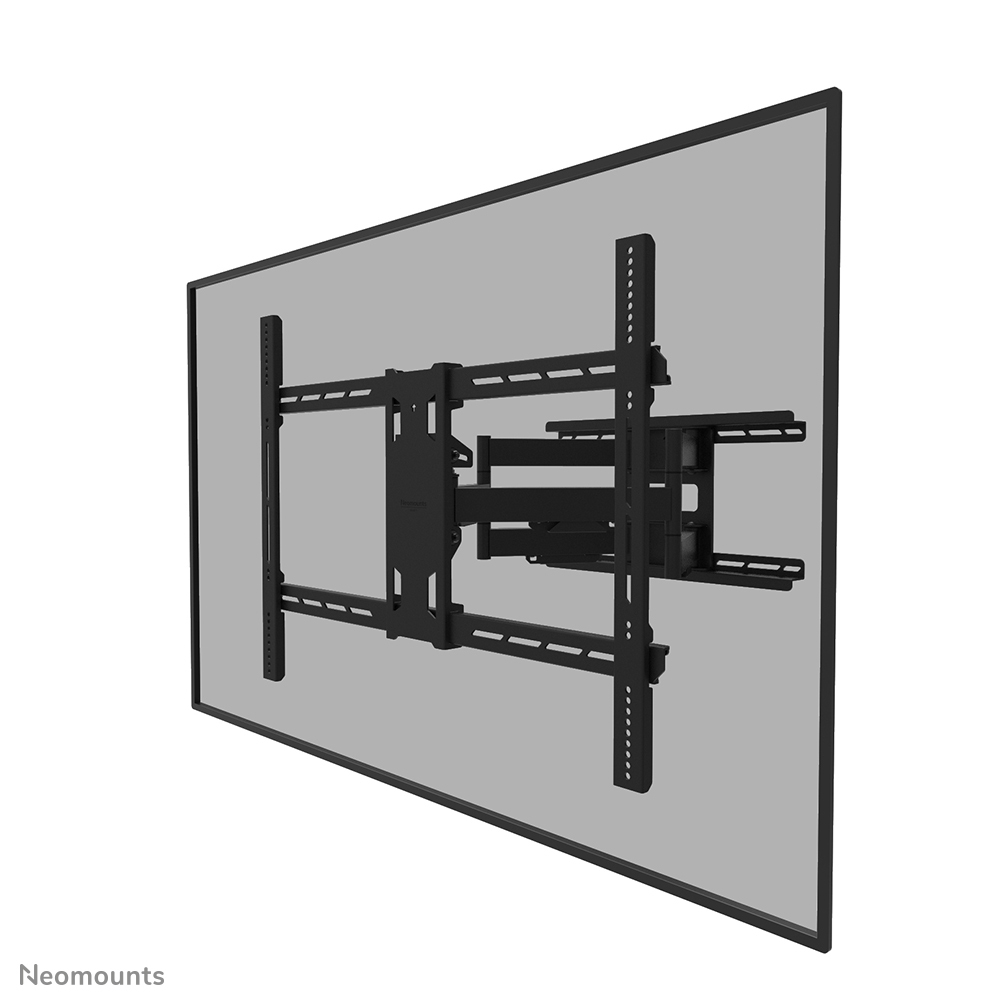

The Neomounts WL40S-950BL18 is a full motion heavy-duty wall mount for flat screens up to 110" with a maximum weight capacity of 125 kg. The versatile tilt (20°) and swivel (90°) technology allows you to create the optimum viewing angle. Level adjustment is available for the perfect installation.
The WL40S-950BL18 has a depth of 8,2-70 cm and is suitable for screens that meet VESA hole pattern 300x200 to 800x600 mm. For extra-large VESA patterns (800x600 to 1200x900), the optional VESA adapter set AWLS-950BL1 is available.
The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. To ensure easy installation, the wall mount is packed pre-assembled and a separate spirit level tool, as well as a fixing template, is included with the wall mount. The mount is equipped with high quality steel cable management to secure any loose cables at the back of the screen.
The WL40S-950BL18 has a depth of 8,2-70 cm and is suitable for screens that meet VESA hole pattern 300x200 to 800x600 mm. For extra-large VESA patterns (800x600 to 1200x900), the optional VESA adapter set AWLS-950BL1 is available.
The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. To ensure easy installation, the wall mount is packed pre-assembled and a separate spirit level tool, as well as a fixing template, is included with the wall mount. The mount is equipped with high quality steel cable management to secure any loose cables at the back of the screen.
Distance to the wall (max)
- 70.3 cm
Package width
- 450 mm
Package depth
- 100 mm
Package height
- 950 mm
Country of origin
- China
Harmonized System (HS) code
- 7326909890
Package net weight
- 22 kg
Swivel angle range
- -45 - 45°
Height
- 630 mm
Housing material
- Steel
Width
- 880 mm
Depth
- 82 mm
Distance to the wall (min)
- 8.2 cm
Warranty period
- 5 year(s)
Suitable for TV
- Yes
Mounting kit
- Yes
Pivot angle
- -3 - 3°
Product colour
- Black
Angle of rotation
- 6°
Rotating
- Yes
Swivelling
- Yes
Tilt angle range
- -5 - 15°
Tilt adjustment
- Yes
Height adjustment range
- 0 - 10 mm
Height adjustment
- Yes
Panel mounting interface
- 300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 500,400 x 600,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,600 x 500,600 x 600,680 x 300,800 x 200,800 x 400,800 x 500,800 x 600
Number of displays supported
- 1
Minimum screen size
- 139.7 cm (55")
Mounting type
- Wall
Maximum screen size
- 2.79 m (110")
Maximum weight capacity
- 125 kg
Cable Management
- Yes
Brand
- Neomounts
