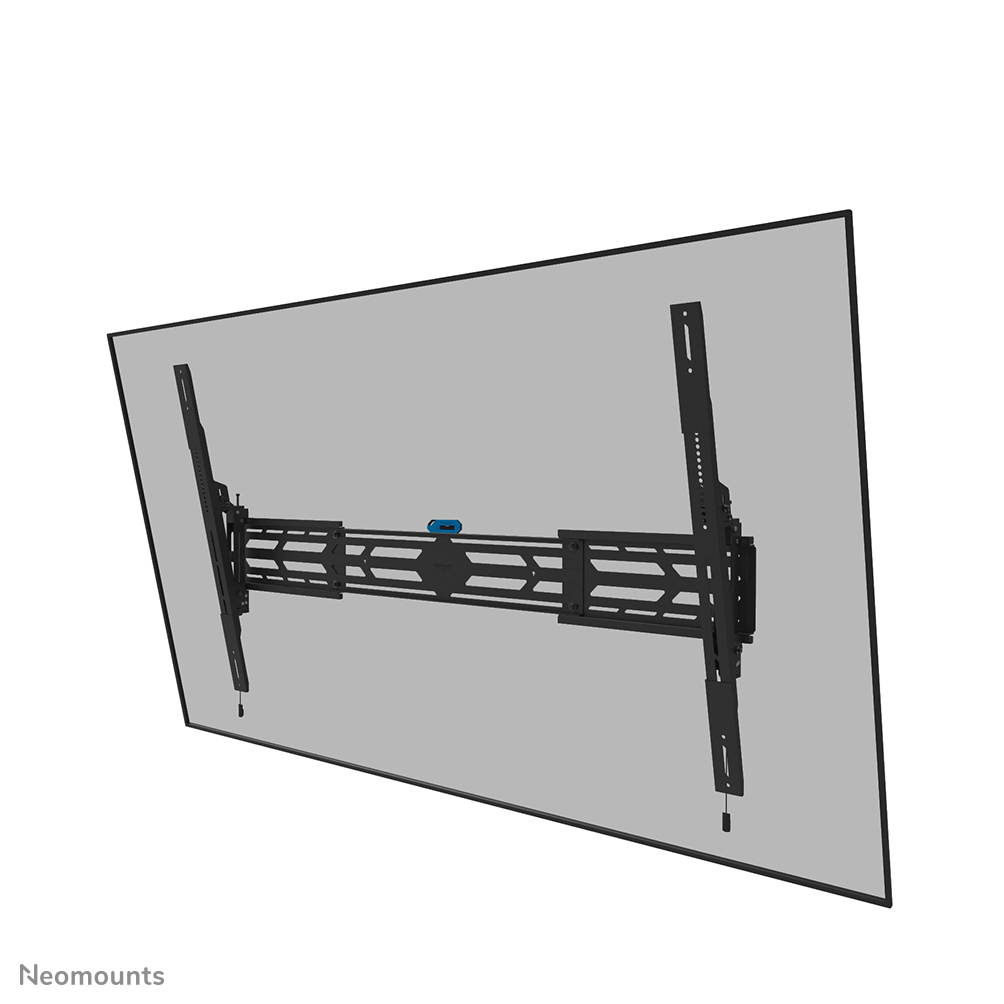

The Neomounts WL35S-950BL19 is a tiltable heavy-duty wall mount for flat screens up to 110" with a maximum weight capacity of 160 kg. The versatile tilt technology, with 3 lockable tilt presets (4°, 8° and 12°), allows you to create the optimum viewing angle. It is possible to install the screen in both portrait and landscape orientation. The mount features individual height adjustable brackets and level adjustment is available for the perfect installation.
The WL35S-950BL19 has a depth of 8,8 cm and is, thanks to the included vertical extension brackets, suitable for screens that meet VESA hole pattern 100x100 to 1500x900 mm. Due to the unique extendable design, the mount can be adjusted to a wide range of screens dimensions; from 55" up to 110". It is possible to lock the mount using a padlock (not included).
The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount to ensure easy installation of the mount.
The WL35S-950BL19 has a depth of 8,8 cm and is, thanks to the included vertical extension brackets, suitable for screens that meet VESA hole pattern 100x100 to 1500x900 mm. Due to the unique extendable design, the mount can be adjusted to a wide range of screens dimensions; from 55" up to 110". It is possible to lock the mount using a padlock (not included).
The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount to ensure easy installation of the mount.
Package width
- 222 mm
Pivot angle
- -3 - 3°
Suitable for TV
- Yes
Warranty period
- 5 year(s)
Width adjustment range
- 893 - 1600 mm
Depth
- 90 mm
Width
- 1600 mm
Distance to the wall (max)
- 9 cm
Height
- 936 mm
Package net weight
- 12.5 kg
Harmonized System (HS) code
- 7326909890
Country of origin
- China
Package height
- 918 mm
Package depth
- 98 mm
Housing material
- Steel
Product colour
- Black
Angle of rotation
- 6°
Tilt angle range
- 0 - 12°
Tilt adjustment
- Yes
Height adjustment range
- 0 - 20 mm
Height adjustment
- Yes
Number of displays supported
- 1
Minimum screen size
- 139.7 cm (55")
Mounting type
- Wall
Maximum screen size
- 2.79 m (110")
Maximum weight capacity
- 160 kg
Brand
- Neomounts
