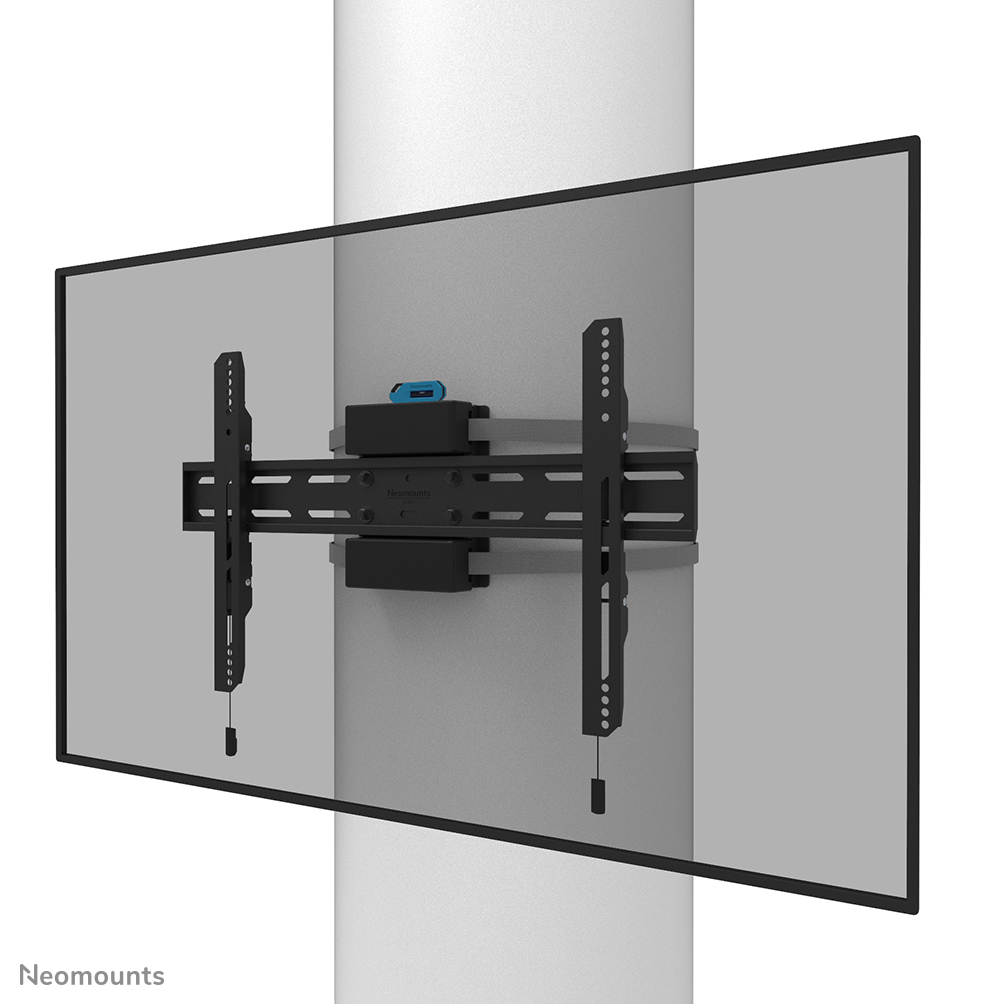

The Neomounts WL30S-910BL16 is a fixed pillar mount for screens up to 75" with a maximum weight capacity of 50 kg. The mount is suitable for Ø25-100 cm cylinder, square and rectangular pillars. Individual bracket height and level adjustment are available for the perfect installation.
The WL30S-910BL16 has a depth of 6,7 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400 mm. The pillar mount has a strap of 350 cm and can be locked if required with the anti-theft screw provided or with a padlock (not included).
The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. The ratchet clamp ensures easy installation, as well as the separate magnetic spirit level tool that is included.
The WL30S-910BL16 has a depth of 6,7 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400 mm. The pillar mount has a strap of 350 cm and can be locked if required with the anti-theft screw provided or with a padlock (not included).
The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. The ratchet clamp ensures easy installation, as well as the separate magnetic spirit level tool that is included.
Package height
- 900 mm
Compatible pole diameter (max)
- 100 cm
Compatible pole diameter (min)
- 25 cm
Pivot angle
- -3 - 3°
Warranty period
- 5 year(s)
Lockable
- Security screw included
Depth
- 67 mm
Width
- 684 mm
Distance to the wall (max)
- 6.7 cm
Height
- 425 mm
Package net weight
- 5.3 kg
Harmonized System (HS) code
- 7326909890
Country of origin
- China
Package depth
- 74 mm
Package width
- 238 mm
Housing material
- Steel
Product colour
- Black
Angle of rotation
- 6°
Panel mounting interface
- 300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400
Number of displays supported
- 1
Minimum screen size
- 101.6 cm (40")
Mounting type
- Pole
Maximum screen size
- 190.5 cm (75")
Maximum weight capacity
- 50 kg
Cable Management
- No
Brand
- Neomounts
