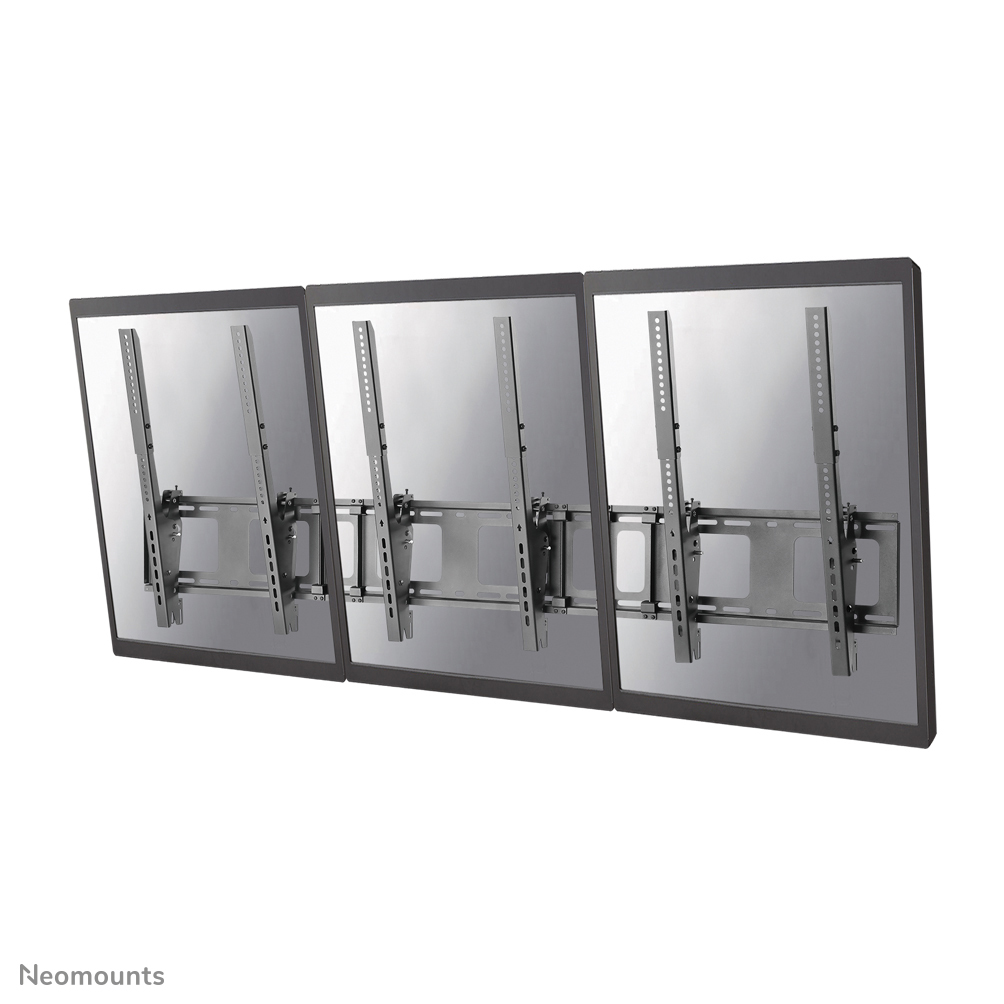

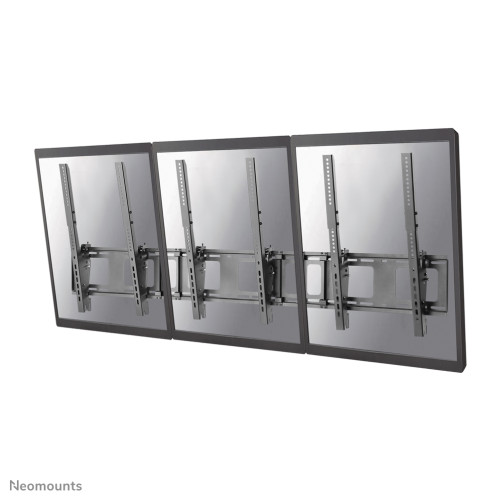

The Neomounts menu board wall mount (vertical mounting), model NS-WMB300PBLACK is a tiltable wall mount for three flat screens up to 52" (132 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Neomounts tilt (0°/-5°/-10°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. Depth of this mount is 7,8 centimetres.
Neomounts NS-WMB300PBLACK is suitable for 3 screens up to 52" (132 cm). The weight capacity of this product is 50 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 400x600 mm (vertical mounting).
All installation material is included with the product.
Neomounts NS-WMB300PBLACK is suitable for 3 screens up to 52" (132 cm). The weight capacity of this product is 50 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 400x600 mm (vertical mounting).
All installation material is included with the product.
Product colour
- Black
Tilt angle
- 10°
Distance to the wall (min)
- 7.6 cm
Width adjustment
- 180 cm
Width
- 1800 mm
Height
- 68 mm
Package net weight
- 16.2 kg
Harmonized System (HS) code
- 7326909890
Country of origin
- China
Package height
- 540 mm
Package depth
- 240 mm
Package width
- 250 mm
Housing material
- Steel
Angle of rotation
- 6°
Swivel angle
- 6°
Tilt angle range
- 0 - 10°
Tilt adjustment
- Yes
Height adjustment
- 68 cm
Panel mounting interface
- 200 x 200,200 x 400,400 x 400,400 x 600,200 x 300,300 x 300,400 x 300,400 x 500,400 x 200
Number of displays supported
- 3
Minimum screen size
- 101.6 cm (40")
Mounting type
- Wall
Maximum screen size
- 132.1 cm (52")
Maximum weight capacity
- 50 kg
Cable Management
- Yes
Brand
- Neomounts
