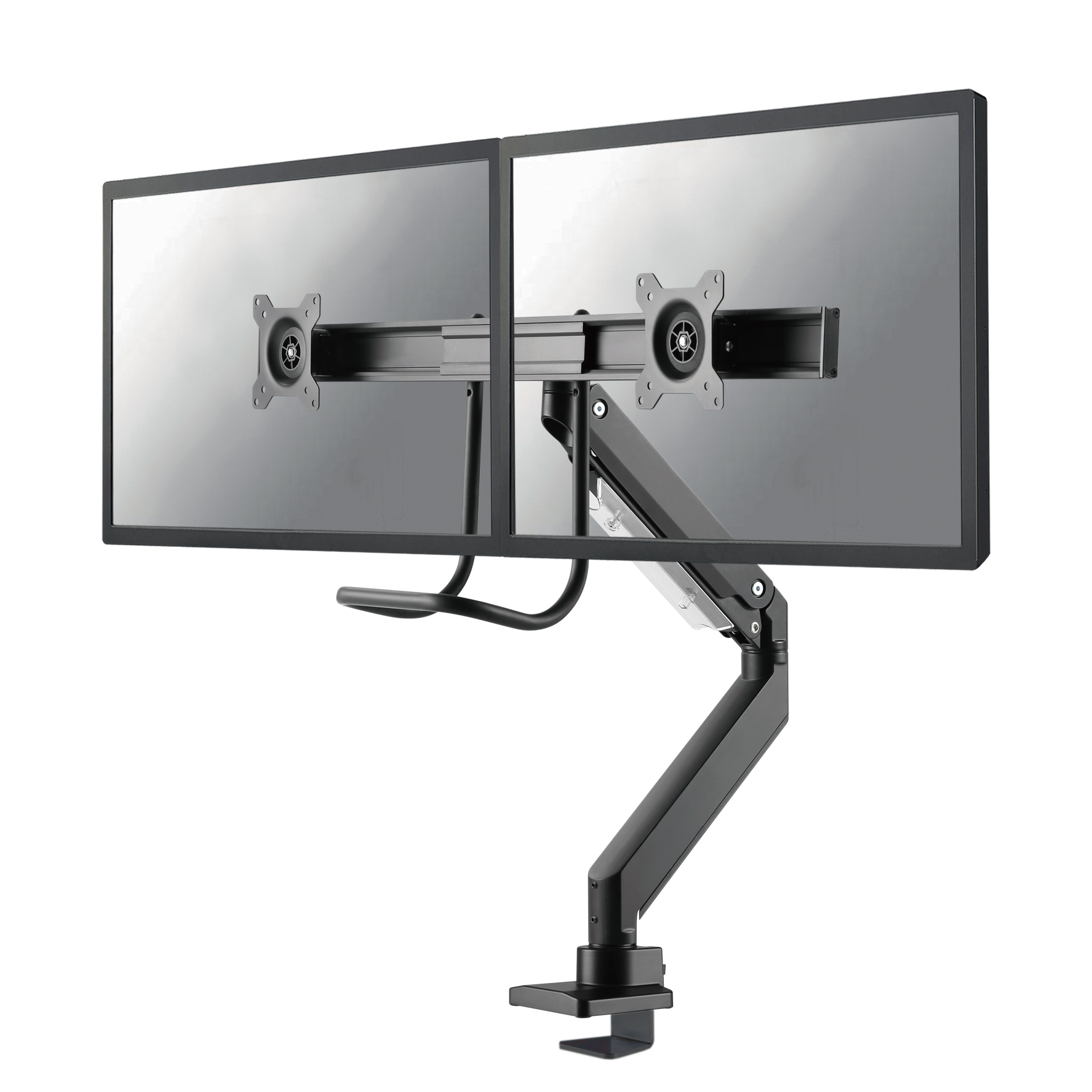

The Neomounts NM-D775DXBLACK is a tilt-, swivel and rotatable desk mount with crossbar and handle for 2 flat screens up to 32". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.
Neomounts' unique tilt (20°), rotate (360°) and swivel (180°/360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable to 60 centimetres using a gas spring. Depth adjustable from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. The mount is equipped with a 180° stop mechanism.
Neomounts NM-D775DXBLACK with handle has three pivot points and is suitable for screens up to 32" (81 cm). The weight capacity of this product is 1 to 16 kg (max. 8 kg each screen). The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Neomounts' unique tilt (20°), rotate (360°) and swivel (180°/360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable to 60 centimetres using a gas spring. Depth adjustable from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. The mount is equipped with a 180° stop mechanism.
Neomounts NM-D775DXBLACK with handle has three pivot points and is suitable for screens up to 32" (81 cm). The weight capacity of this product is 1 to 16 kg (max. 8 kg each screen). The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Swivelling
- Yes
Height
- 600 mm
Swivel angle range
- -90 - 90°
Desk thickness (min)
- 1 cm
Package net weight
- 8.95 kg
Harmonized System (HS) code
- 7326909890
Country of origin
- China
Minimum weight
- 1 kg
Package height
- 895 mm
Package depth
- 150 mm
Package width
- 225 mm
Housing material
- Steel
Product colour
- Black
Angle of rotation
- 360°
Rotating
- Yes
Swivel angle
- 360°
Tilt angle range
- -10 - 10°
Tilt adjustment
- Yes
Depth adjustment range
- 0 - 630 mm
Height adjustment range
- 270 - 600 mm
Height adjustment type
- Gas spring
Height adjustment
- Yes
Desk thickness (max)
- 4.5 cm
Panel mounting interface
- 75 x 75,100 x 100 mm
Mounting
- Clamp/Grommet
Number of displays supported
- 2
Minimum screen size
- 25.4 cm (10")
Mounting type
- Desk
Maximum screen size
- 81.3 cm (32")
Maximum weight capacity
- 8 kg
Cable Management
- Yes
Brand
- Neomounts
