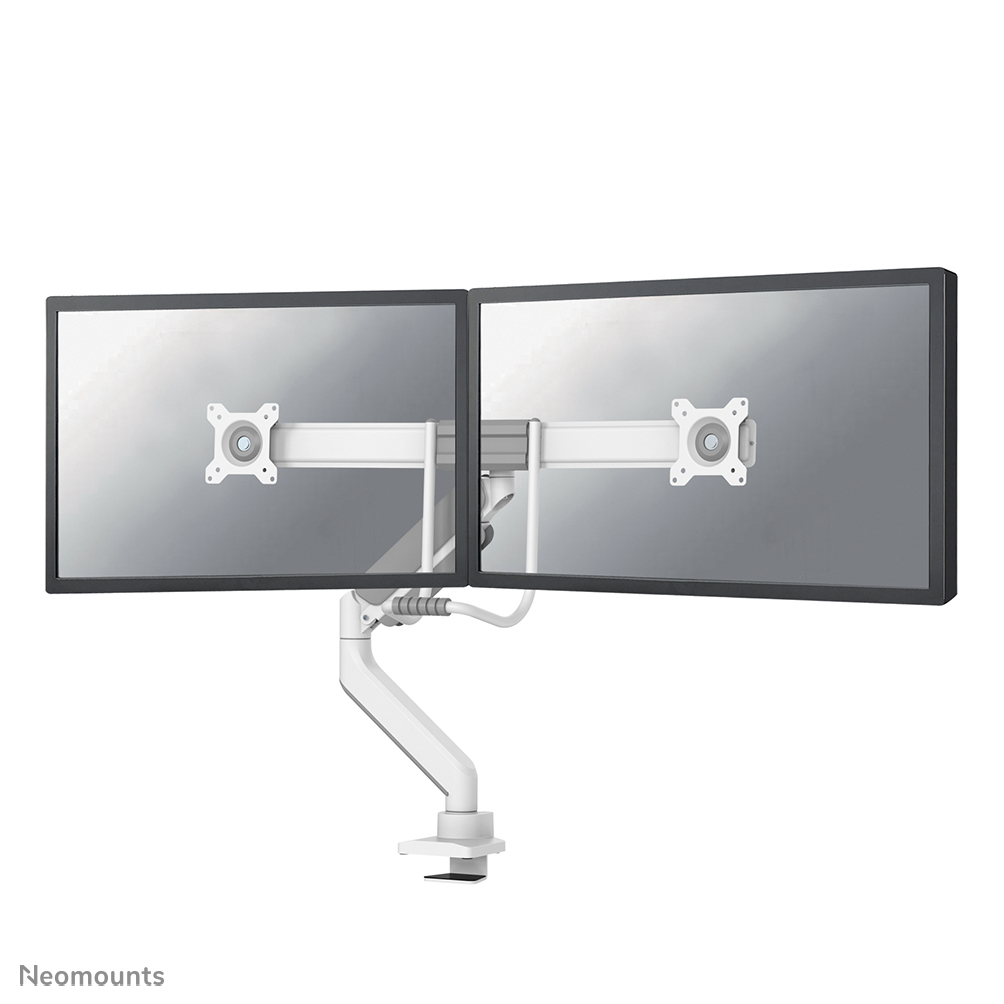

The Neomounts DS75-450WH2 NEXT Core is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 8 kg per screen. The versatile tilt (20°), rotate (360°) and swivel (20°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screens. Additionally, the mount has gas spring height adjustment (27,7-56 cm) and depth adjustment (0-50,5 cm), to create the perfect working position.
The DS75-450WH2 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS75-450WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450WH wall adapter is optionally available.
The DS75-450WH2 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS75-450WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450WH wall adapter is optionally available.
Package net weight
- 7.9 kg
Angle of rotation
- 360°
Product colour
- White
Housing material
- Steel
Package width
- 320 mm
Package depth
- 152 mm
Package height
- 445 mm
Minimum weight
- 1 kg
Country of origin
- China
Harmonized System (HS) code
- 7326909890
Rotating
- Yes
Desk thickness (min)
- 1 cm
Swivel angle range
- -90 - 90°
Height
- 646 mm
Width
- 853 mm
Depth
- 115 mm
Width adjustment range
- 0 - 540 mm
Warranty period
- 5 year(s)
Mounting kit
- Yes
Height adjustment
- Yes
Cable Management
- Yes
Maximum weight capacity
- 8 kg
Maximum screen size
- 81.3 cm (32")
Mounting type
- Desk
Minimum screen size
- 43.2 cm (17")
Number of displays supported
- 2
Mounting
- Clamp/Grommet
Panel mounting interface
- 75 x 75,100 x 100 mm
Desk thickness (max)
- 4.5 cm
Height adjustment type
- Gas spring
Height adjustment range
- 0 - 280 mm
Adjustable depth
- Yes
Depth adjustment range
- 0 - 680 mm
Tilt adjustment
- Yes
Tilt angle range
- -10 - 10°
Swivelling
- Yes
Swivel angle
- 20°
Brand
- Neomounts
