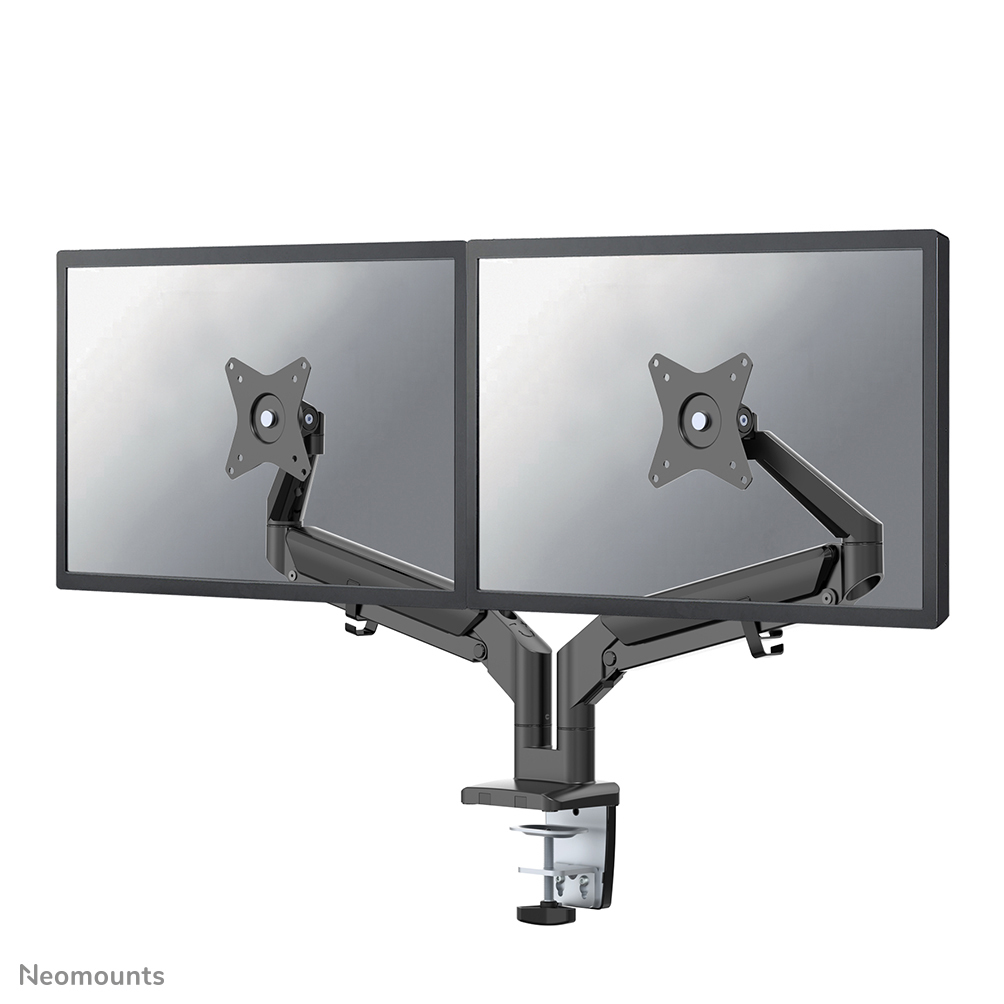

The Neomounts DS70-810BL2 is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 9 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screens. Additionally, the mount features gas spring height adjustment (26,5-55 cm) and depth adjustment (0-49 cm), to create the perfect working position. Additionally, the DS70-810BL2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact. The smart cable management clips ensure orderly routing of the cables.
Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel.This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The DS70-810BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-810BL2 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.
Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel.This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The DS70-810BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-810BL2 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.
Harmonized System (HS) code
- 7326909890
Angle of rotation
- 360°
Product colour
- Black
Housing material
- Steel
Quantity per pack
- 1 pc(s)
Package width
- 265 mm
Package depth
- 142 mm
Package height
- 395 mm
Minimum weight
- 1 kg
Country of origin
- China
Rotating
- Yes
Package net weight
- 6 kg
Desk thickness (min)
- 1 cm
Swivel angle range
- -90 - 90°
Height
- 615 mm
Width
- 117 mm
Depth
- 555 mm
Width adjustment range
- 0 - 1070 mm
Orientation
- Landscape/Portrait
Desk thickness (max)
- 8.5 cm
Cable Management
- Yes
Maximum weight capacity
- 9 kg
Maximum screen size
- 81.3 cm (32")
Mounting type
- Desk
Minimum screen size
- 43.2 cm (17")
Number of displays supported
- 2
Maximum weight capacity (per display)
- 9 kg
Mounting
- Clamp/Grommet
Panel mounting interface
- 75 x 75,100 x 100 mm
Height adjustment
- Yes
Height adjustment type
- Gas spring
Height adjustment range
- 265 - 550 mm
Adjustable depth
- Yes
Depth adjustment range
- 0 - 490 mm
Tilt adjustment
- Yes
Tilt angle range
- -45 - 45°
Swivelling
- Yes
Brand
- Neomounts
