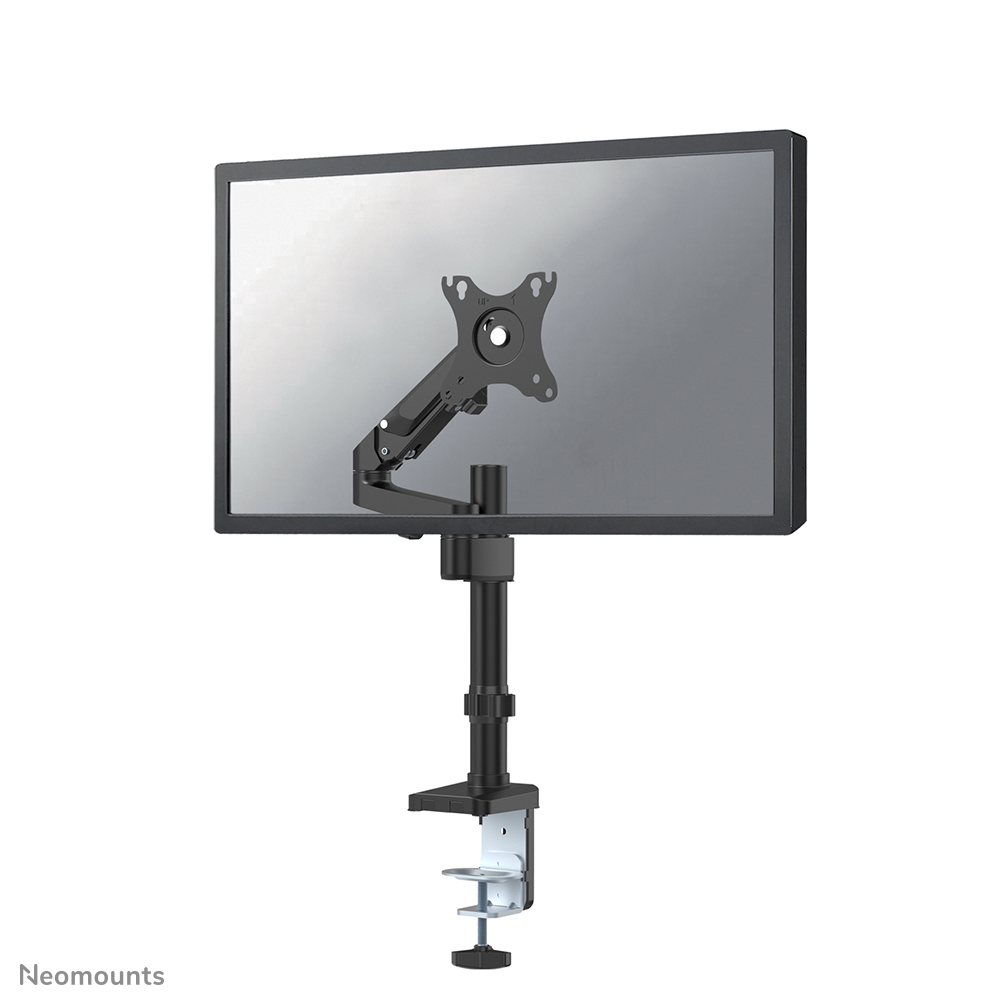

The Neomounts DS70-750BL1 is a full motion desk mount for one flat screen up to 27" with a maximum weight capacity of 7 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screen. Additionally, the mount features gas spring height adjustment (7,3-48,1 cm) and depth adjustment (0-37,8 cm), to create the perfect working position.
The DS70-750BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-750BL1 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
The DS70-750BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-750BL1 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
Package net weight
- 3.1 kg
Product colour
- Black
Housing material
- Steel
Quantity per pack
- 1 pc(s)
Package width
- 240 mm
Package depth
- 116 mm
Package height
- 365 mm
Minimum weight
- 2 kg
Country of origin
- China
Harmonized System (HS) code
- 7326909890
Angle of rotation
- 360°
Desk thickness (min)
- 1 cm
Swivel angle range
- -90 - 90°
Height
- 679 mm
Width
- 117 mm
Depth
- 440 mm
Width adjustment range
- 0 - 378 mm
Orientation
- Landscape/Portrait
Maximum weight capacity (per curved/ultra-wide display)
- 7 kg
Height adjustment
- Yes
Cable Management
- Yes
Maximum weight capacity
- 7 kg
Maximum screen size
- 68.6 cm (27")
Mounting type
- Desk
Minimum screen size
- 43.2 cm (17")
Number of displays supported
- 1
Mounting
- Clamp/Grommet
Panel mounting interface
- 75 x 75,100 x 100 mm
Desk thickness (max)
- 8.5 cm
Height adjustment type
- Gas spring
Height adjustment range
- 73 - 481 mm
Adjustable depth
- Yes
Depth adjustment range
- 0 - 440 mm
Tilt adjustment
- Yes
Tilt angle range
- -45 - 45°
Swivelling
- Yes
Rotating
- Yes
Brand
- Neomounts
