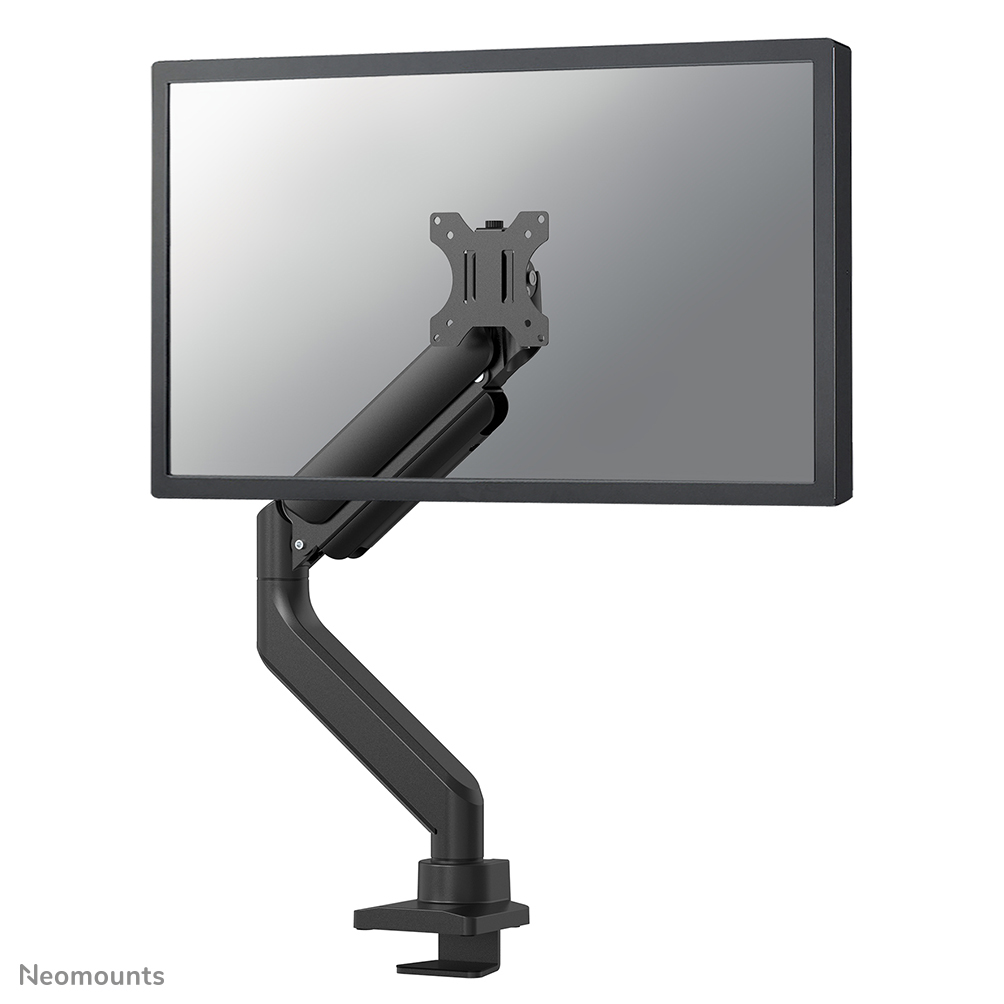

The Neomounts DS70-450BL1 NEXT Core is a full motion desk mount for one flat screen up to 42" with a maximum weight capacity of 15 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (0-51,4 cm), to create the perfect working position.
The DS70-450BL1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS70-450BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450BL wall adapter is optionally available.
The DS70-450BL1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS70-450BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450BL wall adapter is optionally available.
Height
- 653 mm
Housing material
- Steel
Package width
- 280 mm
Package depth
- 127 mm
Package height
- 445 mm
Minimum weight
- 1 kg
Country of origin
- China
Harmonized System (HS) code
- 7326909890
Package net weight
- 5.4 kg
Desk thickness (min)
- 1 cm
Swivel angle range
- -90 - 90°
Product colour
- Black
Distance to the wall (max)
- 56.8 cm
Width
- 120 mm
Depth
- 568 mm
Width adjustment range
- 0 - 920 mm
Distance to the wall (min)
- 10.8 cm
Warranty period
- 5 year(s)
Maximum weight capacity (per curved/ultra-wide display)
- 11 kg
Mounting kit
- Yes
Doesn't contain
- Plastic
Height adjustment type
- Gas spring
Cable Management
- Yes
Maximum weight capacity
- 15 kg
Maximum screen size
- 106.7 cm (42")
Mounting type
- Desk
Minimum screen size
- 43.2 cm (17")
Number of displays supported
- 1
Mounting
- Clamp/Grommet
Panel mounting interface
- 75 x 75,100 x 100 mm
Desk thickness (max)
- 4.5 cm
Height adjustment
- Yes
Height adjustment range
- 261 - 555 mm
Adjustable depth
- Yes
Depth adjustment range
- 54 - 511 mm
Tilt adjustment
- Yes
Tilt angle range
- -45 - 45°
Swivelling
- Yes
Swivel angle
- 180°
Rotating
- Yes
Angle of rotation
- 360°
Brand
- Neomounts
