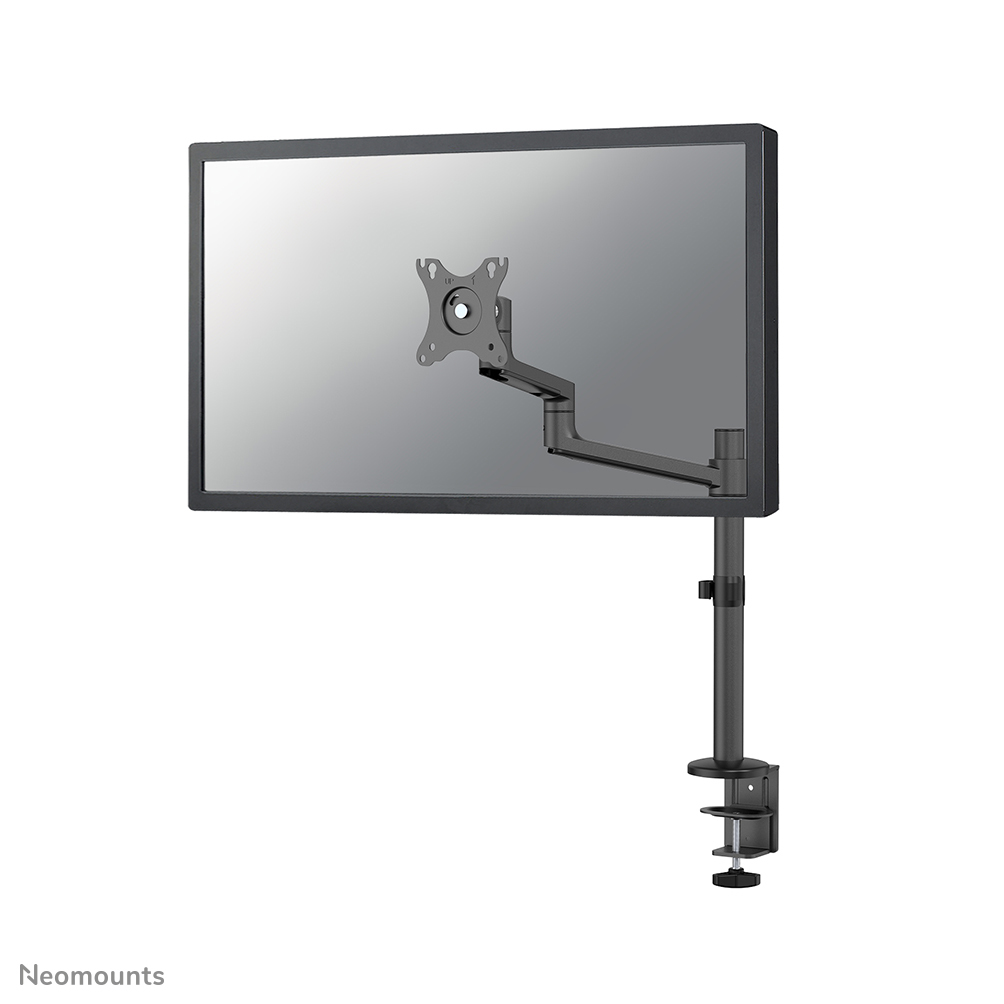

The Neomounts DS60-425BL1 NEXT Lite is a full motion desk mount for screens up to 27" with a maximum weight capacity of 8 kg. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal viewing angle for your screen. Additionally, the mount has manual height and depth adjustment to create the perfect working position.
Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screen to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS60-425BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Neomounts offers various optional VESA adapter plates for deviating hole patterns. The DS60-425BL1 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
The packaging of the NEXT Lite is 100% plastic free and entirely made from cardboard and paper.
Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screen to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS60-425BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Neomounts offers various optional VESA adapter plates for deviating hole patterns. The DS60-425BL1 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
The packaging of the NEXT Lite is 100% plastic free and entirely made from cardboard and paper.
Depth
- 459 mm
Package depth
- 103 mm
Package height
- 440 mm
Country of origin
- China
Harmonized System (HS) code
- 7326909890
Package net weight
- 3 kg
Desk thickness (min)
- 1 cm
Swivel angle range
- -90 - 90°
Height
- 611 mm
Distance to the wall (max)
- 45.9 cm
Width
- 453 mm
Package width
- 140 mm
Width adjustment range
- 0 - 332 mm
Distance to the wall (min)
- 12.8 cm
Orientation
- Landscape/Portrait
Clamp mount desk thickness (max)
- 8 cm
Grommet mount desk thickness (max)
- 4 cm
Feet
- Yes
Feet colour
- Black
Clamp included
- Yes
VESA mount included
- Yes
Height adjustment type
- Manual
Cable Management
- Yes
Maximum weight capacity
- 8 kg
Maximum screen size
- 68.6 cm (27")
Mounting type
- Desk
Minimum screen size
- 43.2 cm (17")
Number of displays supported
- 1
Mounting
- Clamp/Grommet
Panel mounting interface
- 75 x 75,100 x 100 mm
Desk thickness (max)
- 8 cm
Height adjustment
- Yes
Height adjustment range
- 275 - 555 mm
Adjustable depth
- Yes
Depth adjustment range
- 66 - 398 mm
Tilt angle range
- -30 - 90°
Swivelling
- Yes
Angle of rotation
- 360°
Product colour
- Black
Housing material
- Steel
Quantity per pack
- 1 pc(s)
Brand
- Neomounts
