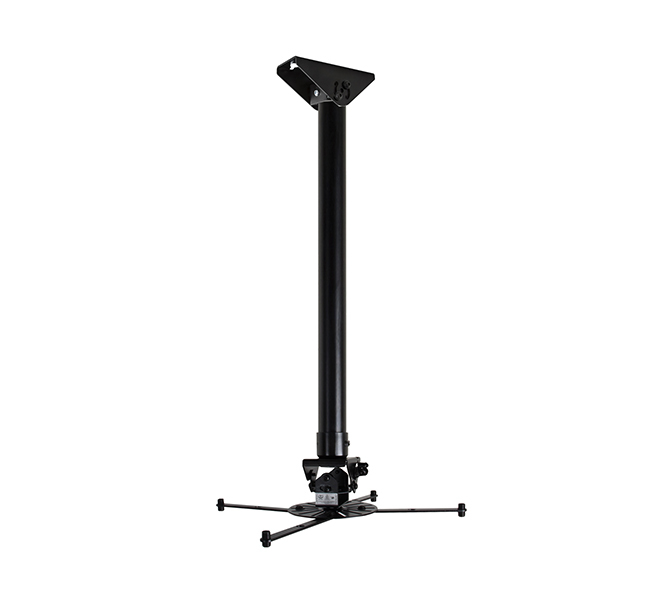

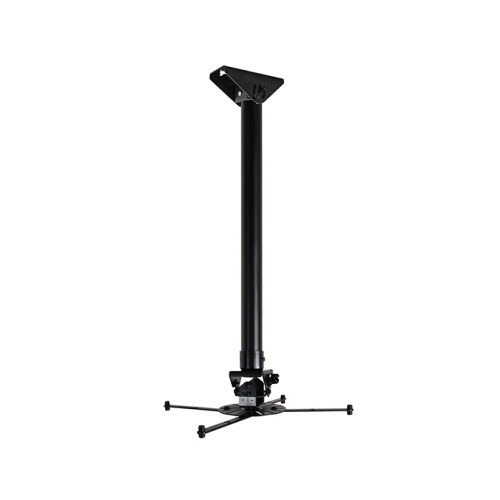

The BT899XL-FD is a fixed drop ceiling mount which has been designed to mount universal projectors up to 25kg. Available in a choice of 5 pole lengths from just 0.5m up to 3m, this fixed drop mount features an adjustable ceiling plate ideal for mounting to angled ceilings. The BT899XL-FD is designed with easy adjustment of tilt, roll and swivel, with optional micro-adjustment for short throw projectors.
- Integrated cable management for smart installation
- Security locking screws and Allen key provided for a secure installation
- Suitable for angled ceilings
- Unique ‘Carousel’ mounting plate for universal compatibility
- Suitable for projectors using M2.5, M3, M4, M5 and M6 fixings
- Max load: 25kg (55lbs)
- Tilt (pich): +/-13°
- Roll: +/-6°
- Yaw: 360°
- Ceiling plate tilt: 90°
- Maximum distance (between fixings: 493mm)
- Pole length options:
BT899XL-FD050: 0.50m (19.7") Pole
BT899XL-FD100: 1m (37.4") Pole
BT899XL-FD150: 1.5m (59") Pole
BT899XL-FD200: 2m (78.7") Pole
BT899XL-FD300: 3m (118.1") Pole - Colour options : Black, White or Chrome Pole
Brand
- B-Tech
