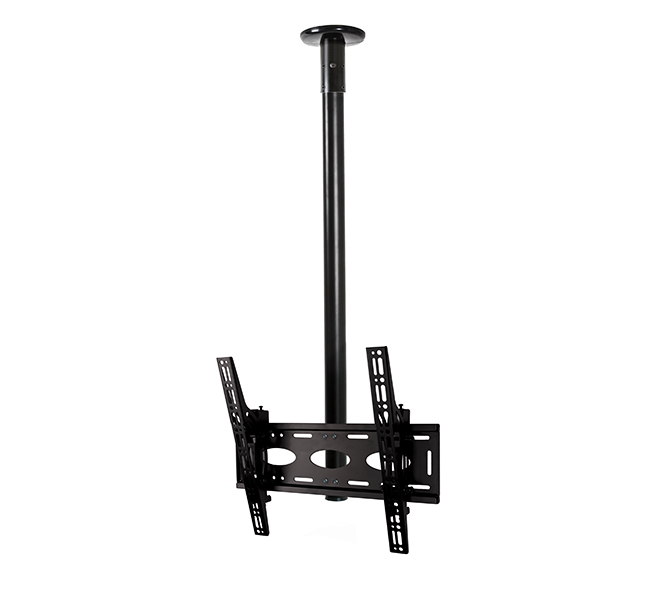

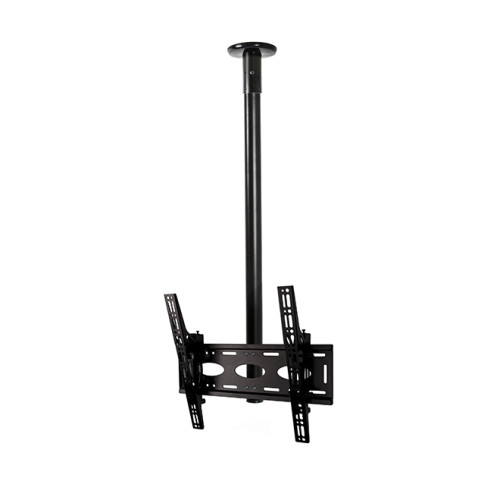

Designed to ceiling mount screens up to 50kg in either landscape or portrait orientation, the BT8424 is available in a choice of four different drop lengths; 1m, 1.5m, 2m and 3m. The mount uses B-Tech's unique 'Torsion-Tilt' mechanism for easy tilt up to +/-15°. Levelling screws are included on the interface arms to finely adjust the screen height and locking screws help prevent unauthorised removal of the screen. Cover plates are supplied for a neat and tidy installation.
Cable Management
- Yes
Maximum weight capacity
- 50 kg
Maximum screen size
- 165.1 cm (65")
Mounting type
- Ceiling
Minimum screen size
- 99.1 cm (39")
Number of displays supported
- 1
Tilt angle range
- -15 - 15°
Product colour
- Black
Harmonized System (HS) code
- 83024200
Height
- 1003 mm
Width
- 620 mm
Depth
- 150 mm
Brand
- B-TECH
