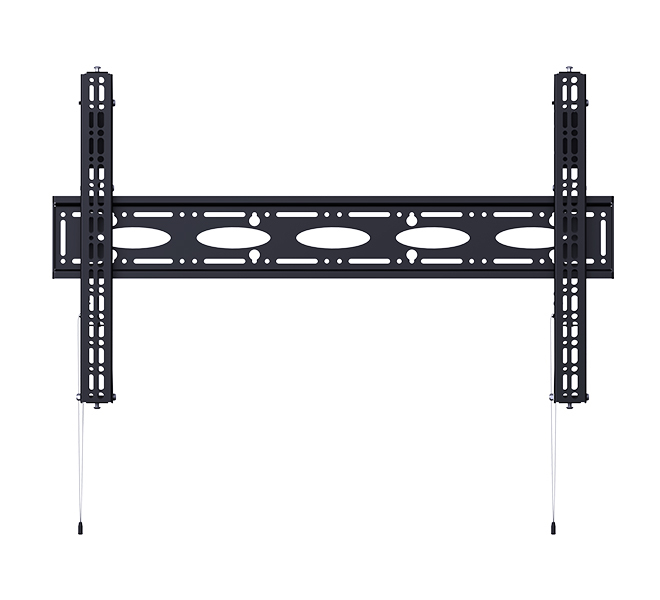

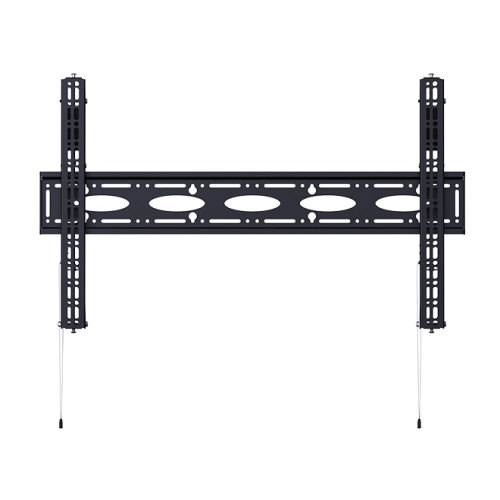

BT9910
Designed to mount the largest screens on the market, the heavy duty BT9910 is capable of supporting weights of 130kg when wall mounted. Ideal for screens over 65" the mount features a choice of 4 tilt positions from 0° up to 15° with the universal interface accommodating screens with mounting patterns up to 1000 x 600mm. With keyhole fixings on the wall plate and a hook-on mounting system, the BT9910 is designed for an easy installation and features height adjustment screws which allow the screen to be levelled once mounted.
Designed to mount the largest screens on the market, the heavy duty BT9910 is capable of supporting weights of 130kg when wall mounted. Ideal for screens over 65" the mount features a choice of 4 tilt positions from 0° up to 15° with the universal interface accommodating screens with mounting patterns up to 1000 x 600mm. With keyhole fixings on the wall plate and a hook-on mounting system, the BT9910 is designed for an easy installation and features height adjustment screws which allow the screen to be levelled once mounted.
Maximum weight capacity
- 130 kg
Maximum screen size
- 2.54 m (100")
Mounting type
- Wall
Minimum screen size
- 165.1 cm (65")
Number of displays supported
- 1
Tilt adjustment
- Yes
Tilt angle range
- 0 - 15°
Product colour
- Black
Housing material
- Steel
Harmonized System (HS) code
- 83024200
Distance to the wall (max)
- 8.2 cm
Package weight
- 12.5 kg
Brand
- B-Tech
