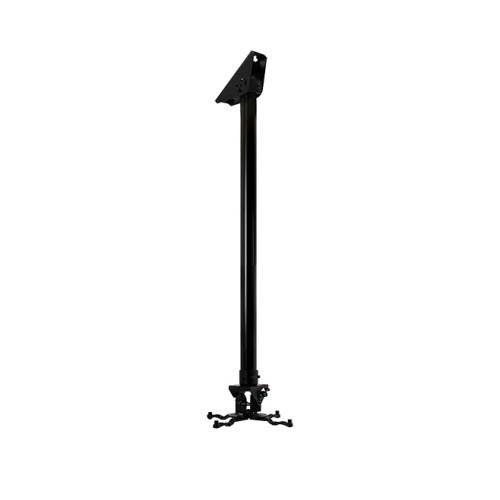

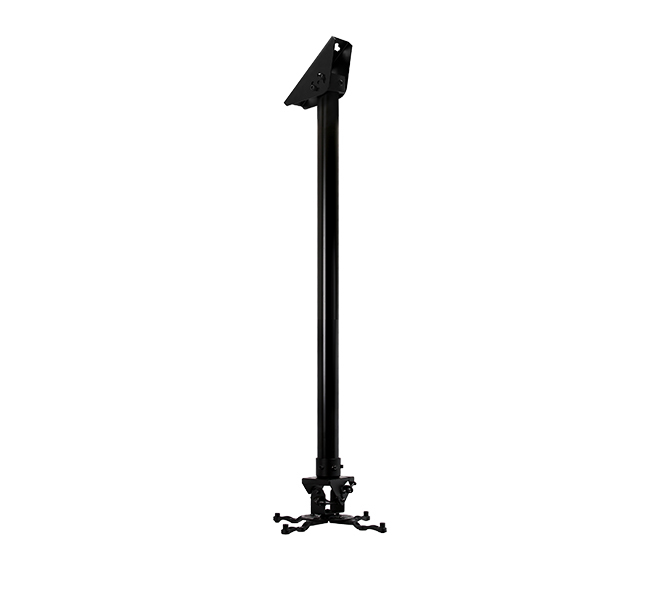

The BT893-FD is a ceiling mounted, universal projector mount designed to mount projectors up to 70kg. Suitable for use with angled ceilings, the BT893-FD features easy adjustment of tilt, yaw & roll plus additional micro-adjustment at each corner makes alignment of projections quick & simple. The projector fixes to a mounting plate that can be extended to accommodate large fixing patterns using the included extension legs. Available in a range of pole lengths to suit your requirements.
Maximum weight capacity
- 25 kg
Mounting type
- Ceiling
Tilt angle range
- -13 - 13°
Angle of rotation
- 360°
Product colour
- Black
Harmonized System (HS) code
- 83024200
Height
- 2154 mm
Width
- 400 mm
Depth
- 400 mm
Ceiling mounting tube length (max)
- 200 cm
Brand
- B-Tech
