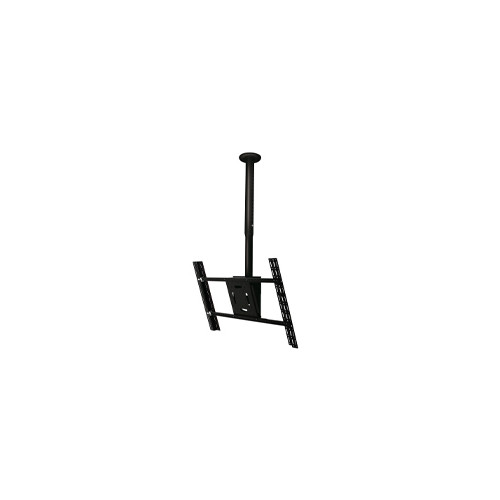

Designed to ceiling mount screens up to 70kg, the BT8427 features a push button adjustable drop of 572mm - 972mm with a safety bolt supplied for a secure installation and utilises an easy tilt mechanism for the perfect view. Levelling screws are included on the interface arms to finely adjust the screen height and locking screws help prevent unauthorised removal of the screen. Cover plates are supplied for a neat and tidy installation.
Cable Management
- Yes
Maximum weight capacity
- 70 kg
Maximum screen size
- 165.1 cm (65")
Mounting type
- Ceiling
Panel mounting interface
- 75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400,600 x 400,800 x 400
Height adjustment
- Yes
Height adjustment range
- 572 - 972 mm
Tilt angle range
- -20 - 20°
Product colour
- Black
Harmonized System (HS) code
- 83024200
Width
- 600 mm
Depth
- 174.1 mm
Mounting kit
- Yes
Brand
- B-Tech
