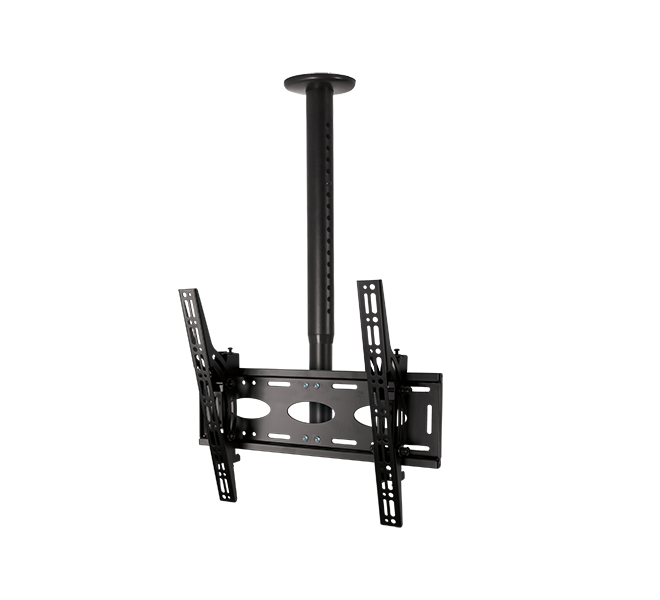

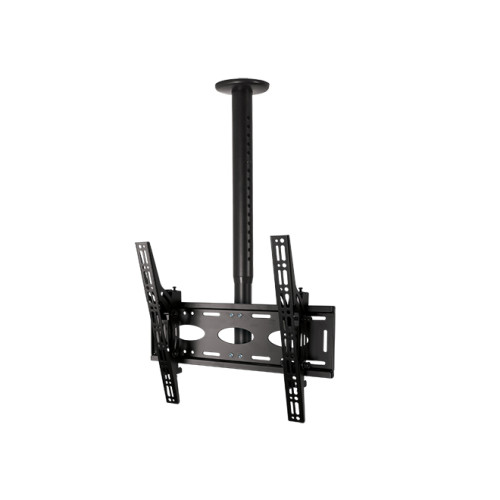

Designed to ceiling mount screens up to 50kg, the BT8426 features an adjustable drop of 663mm - 943mm in increments of 25mm.The mount uses B-Tech's unique 'Torsion-Tilt' mechanism for easy tilt up to +/-15°. Levelling screws are included on the interface arms to finely adjust the screen height and locking screws help prevent unauthorised removal of the screen. Cover plates are supplied for a neat and tidy installation.
Cable Management
- Yes
Maximum weight capacity
- 50 kg
Maximum screen size
- 165.1 cm (65")
Mounting type
- Ceiling
Minimum screen size
- 99.1 cm (39")
Number of displays supported
- 1
Height adjustment
- Yes
Height adjustment range
- 625 - 950 mm
Tilt angle range
- -15 - 15°
Product colour
- Black
Harmonized System (HS) code
- 83024200
Width
- 600 mm
Depth
- 152.1 mm
Mounting kit
- Yes
Brand
- B-Tech
