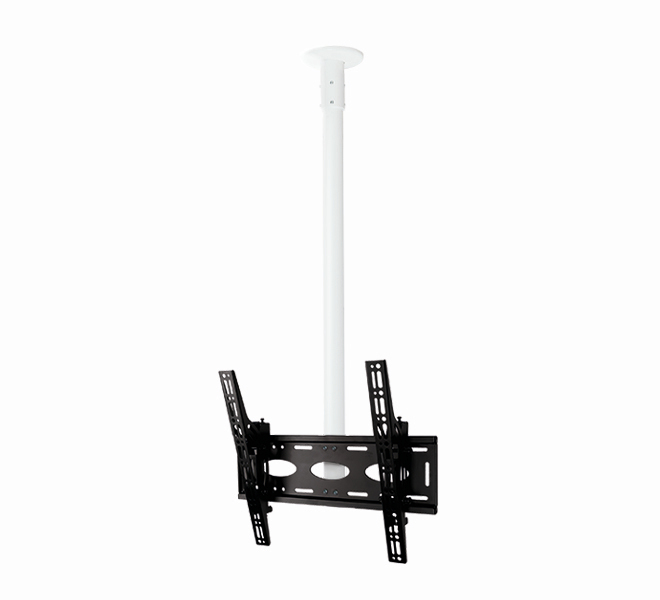

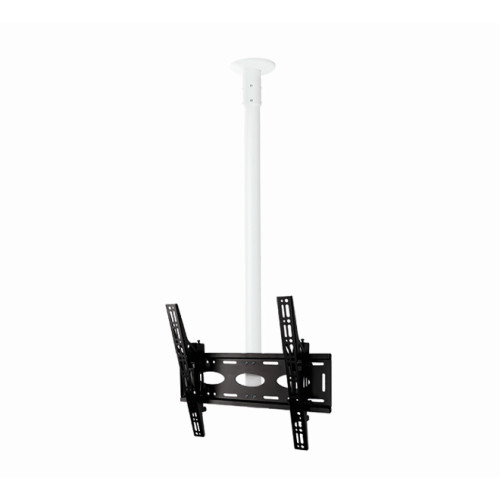

Designed to ceiling mount screens up to 50kg in either landscape or portrait orientation, the BT8424 is available in a choice of four different drop lengths; 1m, 1.5m, 2m and 3m. The mount uses B-Tech's unique 'Torsion-Tilt' mechanism for easy tilt up to +/-15°. Levelling screws are included on the interface arms to finely adjust the screen height and locking screws help prevent unauthorised removal of the screen. Cover plates are supplied for a neat and tidy installation.
Cable Management
- Yes
Maximum weight capacity
- 50 kg
Maximum screen size
- 165.1 cm (65")
Mounting type
- Ceiling
Number of displays supported
- 1
Mounting
- Screws
Panel mounting interface
- 600 x 400 mm
Tilt adjustment
- Yes
Tilt angle range
- 15 - -15°
Product colour
- Black, White
Quantity per pack
- 1 pc(s)
Harmonized System (HS) code
- 83024200
Easy to install
- Yes
Orientation
- Landscape/Portrait
Ceiling mounting tube length (max)
- 100 cm
Brand
- B-Tech
