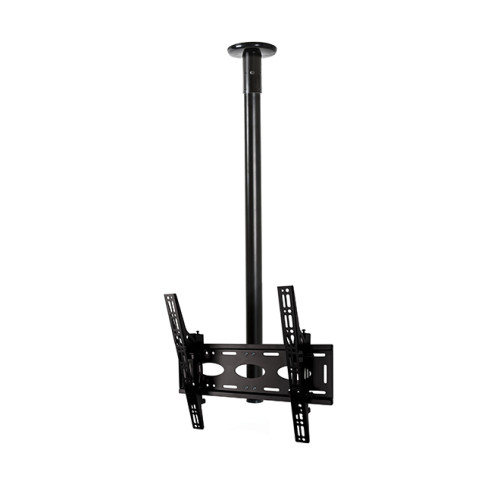

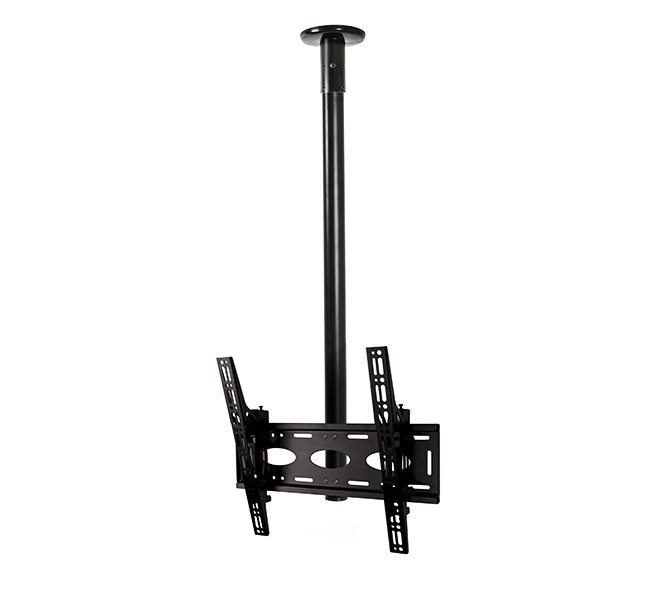

Designed to ceiling mount screens up to 50kg in either landscape or portrait orientation, the BT8424 is available in a choice of four different drop lengths; 1m, 1.5m, 2m and 3m. The mount uses B-Tech's unique 'Torsion-Tilt' mechanism for easy tilt up to +/-15°. Levelling screws are included on the interface arms to finely adjust the screen height and locking screws help prevent unauthorised removal of the screen. Cover plates are supplied for a neat and tidy installation.
Product colour
- Chrome
Arm Length
- 108 cm
Suitable for computer monitor
- Yes
Ceiling mounting tube length (max)
- 1080 cm
Maximum distance to ceiling
- 100 cm
Mounting kit
- Yes
Width
- 206 mm
Harmonized System (HS) code
- 83024200
Housing material
- Metal
Height adjustment type
- Manual
Height adjustment
- Yes
Panel mounting interface
- 400 x 600 mm
Number of displays supported
- 1
Mounting type
- Ceiling
Maximum screen size
- 165.1 cm (65")
Maximum weight capacity
- 50 kg
Cable Management
- Yes
Brand
- B-TECH
