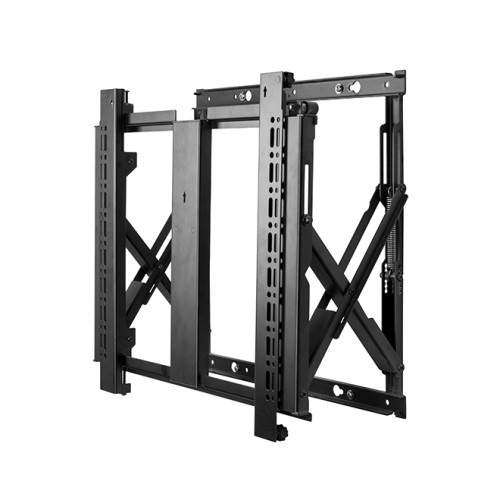

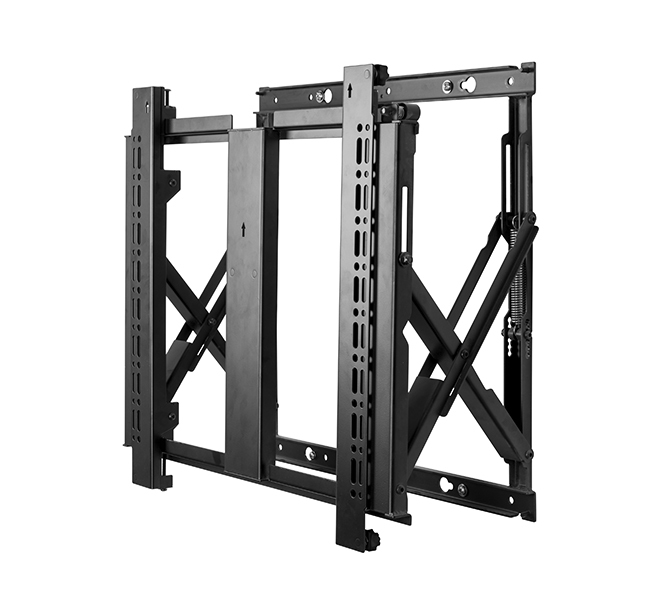

Designed to make video wall installations as quick and simple as possible, this modular video wall mount can be used to create unlimited video wall configurations in both landscape and portrait format. The BT8312 low profile design is ideal for mounting into walls with a shallow recess or when space in front of the wall is minimal. 8 points of micro-adjustment makes accurate screen alignment quick and easy and the soft opening features a controlled release enabling access to the rear of the mounted screen for servicing and maintenance.
Maximum weight capacity
- 50 kg
Maximum screen size
- 177.8 cm (70")
Mounting type
- Wall
Minimum screen size
- 106.7 cm (42")
Number of displays supported
- 1
Panel mounting interface
- 200 x 100,400 x 400,600 x 400
Product colour
- Black
Harmonized System (HS) code
- 83024200
Height
- 541.4 mm
Distance to the wall (max)
- 23.5 cm
Width
- 620 mm
Distance to the wall (min)
- 6.31 cm
Brand
- B-Tech
